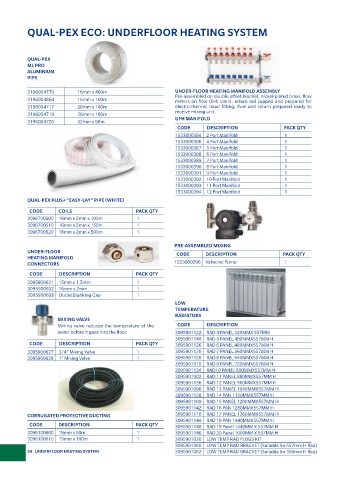

Page 34 - Pipelife Irish Trade Brochure

QUAL-PEX ECO: UNDERFLOOR HEATING SYSTEM

QUAL-PEX
ML PRO
ALUMINIUM
PIPE

3196004770 16mm x 400m UNDER-FLOOR HEATING MANIFOLD ASSEMBLY
Pre-assembled on double offset bracket, nickel-plated brass, flow
3196004864 16mm x 100m meters on flow (0-4 l/min, return rail capped and prepared for
3196004717 20mm x 100m electro-thermic head fitting, flow and return prepared ready to
receive mixing unit.
3196004719 26mm x 100m
UFH MANIFOLD
3196004720 32mm x 50m
CODE DESCRIPTION PACK QTY
1533000384 2 Port Manifold 1
1533000386 4 Port Manifold 1
1533000387 5 Port Manifold 1
1533000388 6 Port Manifold 1
1533000389 7 Port Manifold 1
1533000390 8 Port Manifold 1
1533000391 9 Port Manifold 1
1533000392 10 Port Manifold 1
1533000393 11 Port Manifold 1
1533000394 12 Port Manifold 1
QUAL-PEX PLUS+ “EASY-LAY“ PIPE (WHITE)

CODE COILS PACK QTY
3096700500 16mm x 2mm x 100m 1
3096700510 16mm x 2mm x 150m 1
3096700520 16mm x 2mm x 500m 1

PRE-ASSEMBLED MIXING
UNDER-FLOOR CODE DESCRIPTION PACK QTY
HEATING MANIFOLD
CONNECTORS 1533000296 Valve inc Pump 1
CODE DESCRIPTION PACK QTY
3095900631 15mm x 1.5mm 1
3095900632 16mm x 2mm 1
3095900638 Outlet Blanking Cap 1
LOW
TEMPERATURE
RADIATORS
MIXING VALVE
Mixing valve reduces the temperature of the CODE DESCRIPTION
water before it goes into the floor. 3095901122 RAD 4 PANEL 320MMX 557MM
3095901140 RAD 5 PANEL 400MMX557MM H
CODE DESCRIPTION PACK QTY 3095901126 RAD 6 PANEL 480MMX557MM H
3095900627 3/4” Mixing Valve 1 3095901120 RAD 7 PANEL 560MMX557MM H
3095900628 1” Mixing Valve 1 3095901128 RAD 8 PANEL 640MMX557MM H
3095901015 RAD 9 PANEL 720MMX557MM H
3095901134 RAD10 PANEL 800MMX557MM H
3095901002 RAD 11 PANEL 880MMX557MM H
3095901136 RAD 12 PANEL 960MMX557MM H
3095901090 RAD 13 PANEL 1040MMX557MM H
3095901138 RAD 14 PAN 1120MMX557MM H
3095901100 RAD 15 PANEL 1200MMX557MM H
3095901142 RAD 16 PAN 1280MMX557MM H
CORRUGATED PROTECTIVE DUCTING 3095901110 RAD 17 PANEL 1360MMX557MM H
3095901144 RAD 18 PAN 1440MMX557MM H
CODE DESCRIPTION PACK QTY 3095901148 RAD 19 Panel 1440MM X 557MM H
3096100600 19mm x 50m 1 3095901146 RAD 20 Panel 1600MM X 557MM H
3096100610 19mm x 100m 1 3095901030 LOW TEMP RAD PLUGS KIT
3095901060 LOW TEMP RAD BRACKET (Suitable for 557mm H Rad)
34 UNDERFLOOR HEATING SYSTEM 3095901062 LOW TEMP RAD BRACKET (Suitable for 350mm H Rad)
