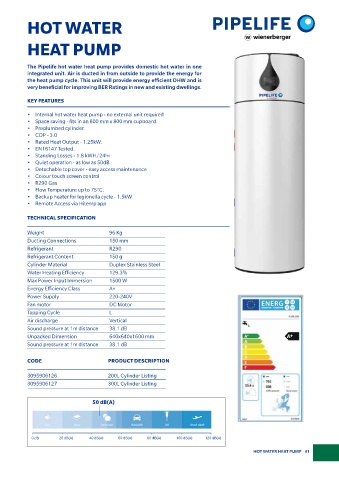

Page 41 - Pipelife Irish Trade Brochure

HOT WATER

HEAT PUMP

The Pipelife hot water heat pump provides domestic hot water in one
integrated unit. Air is ducted in from outside to provide the energy for
the heat pump cycle. This unit will provide energy efficient DHW and is
very beneficial for improving BER Ratings in new and existing dwellings.

KEY FEATURES

• Internal hot water heat pump - no external unit required
• Space saving - fits in an 800 mm x 800 mm cupboard.
• Preplumbed cylinder.
• COP - 3.0
• Rated Heat Output - 1.25kW.
• EN16147 Tested.
• Standing Losses - 1.8 kWH/24hr
• Quiet operation - as low as 50dB
• Detachable top cover - easy access maintenance
• Colour touch screen control
• R290 Gas
• Flow Temperature up to 75°C.
• Backup heater for legionella cycle - 1.5kW
• Remote Access via Hitemp app

TECHNICAL SPECIFICATION

Weight 96 Kg
Ducting Connections 150 mm
Refrigerant R290
Refrigerant Content 150 g
Cylinder Material Duplex Stainless Steel
Water Heating Efficiency 129.3%
Max Power Input Immersion 1500 W
Energy Efficiency Class A+
Power Supply 220-240V
Fan motor DC Motor
Tapping Cycle L
Air discharge Vertical
Sound pressure at 1m distance 38.1 dB
Unpacked Dimension 640x640x1600 mm
Sound pressure at 1m distance 38.1 dB

CODE PRODUCT DESCRIPTION

3095906126 200L Cylinder Listing
3095906127 300L Cylinder Listing

50 dB(A)

0 dB 20 dB(A) 40 dB(A) 60 dB(A) 80 dB(A) 100 dB(A) 120 dB(A)
HOT WATER HEAT PUMP 41
