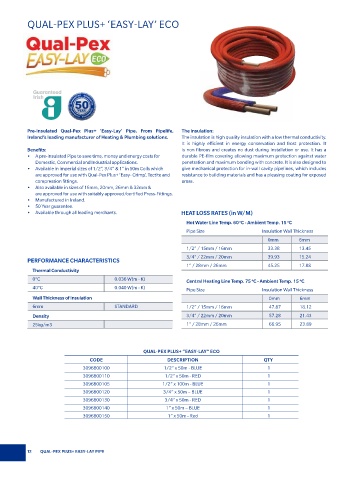

Page 12 - Pipelife Irish Trade Brochure

QUAL-PEX PLUS+ ‘EASY-LAY’ ECO

Pre-Insulated Qual-Pex Plus+ ‘Easy-Lay’ Pipe. From Pipelife, The Insulation:
Ireland’s leading manufacturer of Heating & Plumbing solutions. The insulation is high quality insulation with a low thermal conductivity.
It is highly efficient in energy conservation and frost protection. It
Benefits: is non fibrous and creates no dust during installation or use. It has a
• A pre-insulated Pipe to save time, money and energy costs for durable PE-film covering allowing maximum protection against water
Domestic, Commercial and Industrial applications. penetration and maximum bonding with concrete. It is also designed to
• Available in imperial sizes of 1/2”, 3/4” & 1” in 50m Coils which give mechanical protection for in-wall cavity pipelines, which includes
are approved for use with Qual-Pex Plus+ ‘Easy- Crimp’, Tectite and resistance to building materials and has a pleasing coating for exposed
compression fittings. areas.
• Also available in sizes of 16mm, 20mm, 26mm & 32mm &
are approved for use with suitably approved/certified Press-Fittings.
• Manufactured in Ireland.
• 50 Year guarantee.
• Available through all leading merchants. HEAT LOSS RATES (in W/M)
Hot Water Line Temp. 60 C - Ambient Temp. 15 C
o
o
Pipe Size Insulation Wall Thickness
0mm 6mm
1/2” / 15mm / 16mm 33.38 13.45
3/4” / 22mm / 20mm 39.93 15.24
PERFORMANCE CHARACTERISTICS
1” / 28mm / 26mm 45.25 17.88
Thermal Conductivity
0°C 0.036 W(m - K) Central Heating Line Temp. 75 C - Ambient Temp. 15 C
o
o
40°C 0.040 W(m - K) Pipe Size Insulation Wall Thickness
Wall Thickness of Insulation 0mm 6mm
6mm STANDARD 1/2” / 15mm / 16mm 47.87 18.12
Density 3/4” / 22mm / 20mm 57.28 21.43
25kg/m3 1” / 28mm / 26mm 66.95 23.89

QUAL-PEX PLUS+ “EASY-LAY” ECO
CODE DESCRIPTION QTY
3096800100 1/2” x 50m - BLUE 1
3096800110 1/2” x 50m - RED 1
3096800105 1/2” x 100m - BLUE 1
3096800120 3/4” x 50m – BLUE 1
3096800130 3/4” x 50m - RED 1
3096800140 1” x 50m – BLUE 1
3096800150 1” x 50m - Red 1

12 QUAL-PEX PLUS+ EASY-LAY PIPE
