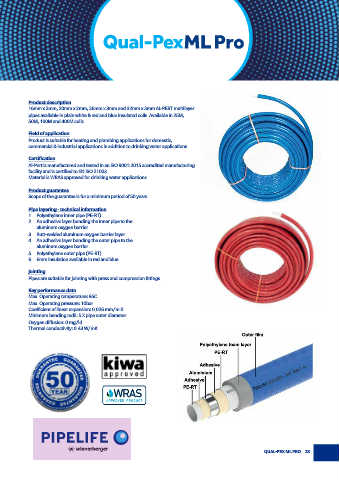

Page 23 - Pipelife Irish Trade Brochure

Product description
16mm x 2mm, 20mm x 2mm, 26mm x 3mm and 32mm x 3mm AL-PERT multilayer
pipes available in plain white & red and blue insulated coils. Available in 25M,
50M, 100M and 400M coils.

Field of application
Product is suitable for heating and plumbing applications for domestic,
commercial & industrial applications in addition to drinking water applications.
Certification
Al-Pert is manufactured and tested in an ISO 9001:2015 accredited manufacturing
facility and is certified to EN ISO 21003.
Material is WRAS approved for drinking water applications.

Product guarantee
Scope of the guarantee is for a minimum period of 50 years.
Pipe layering - technical information
1. Polyethylene inner pipe (PE-RT).
2. An adhesive layer bonding the inner pipe to the
aluminum oxygen barrier.
3. Butt-welded aluminum oxygen barrier layer.
4. An adhesive layer bonding the outer pipe to the
aluminum oxygen barrier.
5. Polyethylene outer pipe (PE-RT).
6. 6mm insulation available in red and blue.

Jointing
Pipes are suitable for jointing with press and compression fittings.

Key performance data
Max. Operating temperature: 95C.
Max. Operating pressure: 10bar.
Coefficient of linear expansion: 0.026 mm/m K.
Minimum bending radii: 5 X pipe outer diameter.
Oxygen diffusion: 0 mg/ld.
Thermal conductivity: 0.43 W/mK.

QUAL-PEX ML PRO 23
