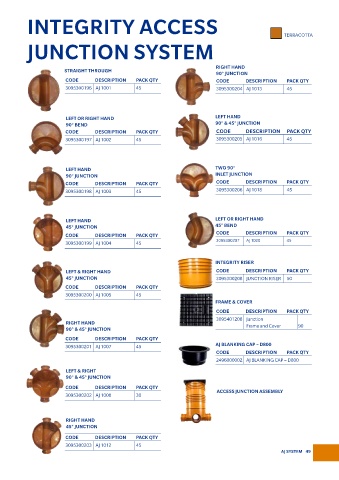

Page 49 - Pipelife Irish Trade Brochure

INTEGRITY ACCESS

TERRACOTTA
JUNCTION SYSTEM

RIGHT HAND
STRAIGHT THROUGH
90° JUNCTION
CODE DESCRIPTION PACK QTY CODE DESCRIPTION PACK QTY
3095300196 AJ 1001 45 3095300204 AJ 1013 45

LEFT OR RIGHT HAND LEFT HAND
90° BEND 90° & 45° JUNCTION
CODE DESCRIPTION PACK QTY CODE DESCRIPTION PACK QTY
3095300197 AJ 1002 45 3095300205 AJ 1016 45

LEFT HAND TWO 90°
90° JUNCTION INLET JUNCTION
CODE DESCRIPTION PACK QTY CODE DESCRIPTION PACK QTY
3095300198 AJ 1003 45 3095300206 AJ 1018 45

LEFT HAND LEFT OR RIGHT HAND
45° JUNCTION 45° BEND
CODE DESCRIPTION PACK QTY
CODE DESCRIPTION PACK QTY
3095300207 AJ 1020 45
3095300199 AJ 1004 45

INTEGRITY RISER
LEFT & RIGHT HAND CODE DESCRIPTION PACK QTY
45° JUNCTION 3095300208 JUNCTION RISER 50
CODE DESCRIPTION PACK QTY
3095300200 AJ 1005 45
FRAME & COVER
CODE DESCRIPTION PACK QTY
3095401208 Junction
RIGHT HAND
90° & 45° JUNCTION Frame and Cover 90
CODE DESCRIPTION PACK QTY
3095300201 AJ 1007 45 AJ BLANKING CAP – D800
CODE DESCRIPTION PACK QTY
2496000002 AJ BLANKING CAP – D800

LEFT & RIGHT
90° & 45° JUNCTION
CODE DESCRIPTION PACK QTY
ACCESS JUNCTION ASSEMBLY
3095300202 AJ 1008 30

RIGHT HAND
45° JUNCTION
CODE DESCRIPTION PACK QTY
3095300203 AJ 1012 45
AJ SYSTEM 49
