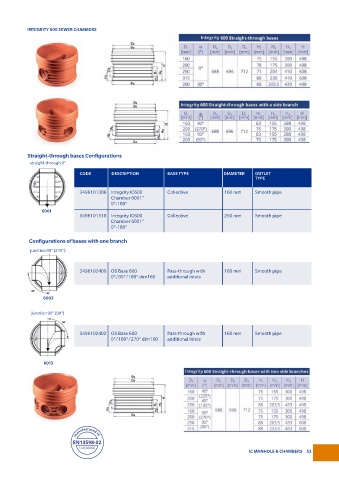

INTEGRITY 600 SEWER CHAMBERS

Straight-through bases Configurations
straight-through 0°

CODE DESCRIPTION BASE TYPE DIAMETER OUTLET
TYPE

3496101306 Integrity IC600 Collective 160 mm Smooth pipe
Chamber 6001”
0°-180°
6001
3496101318 Integrity IC600 Collective 250 mm Smooth pipe
Chamber 6001”
0°-180°

Configurations of bases with one branch
junction 90° (270°)

3496102400 OS Base 600 Pass-through with 160 mm Smooth pipe
0°/90°/180° dim160 additional inlets

6003

junction 90° (90°)

3496102402 OS Base 600 Pass-through with 160 mm Smooth pipe
0°/180°/270° dim160 additional inlets

6013

manufactured to
EN13598-02
STANDARD
IC MANHOLE & CHAMBERS 53
