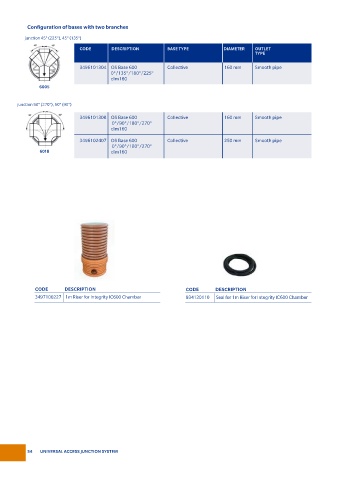

Page 54 - Pipelife Irish Trade Brochure
P. 54
Configuration of bases with two branches
junction 45° (225°), 45° (135°)
CODE DESCRIPTION BASE TYPE DIAMETER OUTLET
TYPE
3496101304 OS Base 600 Collective 160 mm Smooth pipe
0°/135°/180°/225°
dim160
6005
junction 90° (270°), 90° (90°)
3496101308 OS Base 600 Collective 160 mm Smooth pipe
0°/90°/180°/270°
dim160
3496102407 OS Base 600 Collective 250 mm Smooth pipe
0°/90°/180°/270°
6018 dim160
CODE DESCRIPTION CODE DESCRIPTION
3497100227 1m Riser for Integrity IC600 Chamber 934130110 Seal for 1m Riser for Integrity IC600 Chamber
54 UNIVERSAL ACCESS JUNCTION SYSTEM
