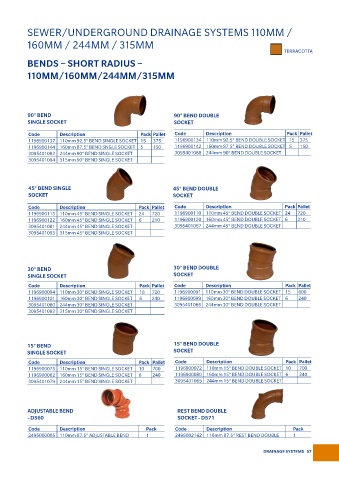

Page 57 - Pipelife Irish Trade Brochure

SEWER/UNDERGROUND DRAINAGE SYSTEMS 110MM /
160MM / 244MM / 315MM

TERRACOTTA
BENDS – SHORT RADIUS –
110MM/160MM/244MM/315MM

90° BEND 90° BEND DOUBLE
SINGLE SOCKET SOCKET

Code Description Pack Pallet Code Description Pack Pallet
1196900137 110mm 92.5° BEND SINGLE SOCKET 15 375 1196900134 110mm 92.5° BEND DOUBLE SOCKET 15 375
1196900144 160mm 87.5° BEND SNGLE SOCKET 5 150 1196900142 160mm 87.5° BEND DOUBLE SOCKET 5 150
3095401082 244mm 90° BEND SINGLE SOCKET 3095401068 244mm 90° BEND DOUBLE SOCKET
3095401094 315mm 90° BEND SINGLE SOCKET

45° BEND SINGLE 45° BEND DOUBLE
SOCKET SOCKET

Code Description Pack Pallet Code Description Pack Pallet
1196900113 110mm 45° BEND SINGLE SOCKET 24 720 1196900110 110mm 45° BEND DOUBLE SOCKET 24 720
1196900122 160mm 45° BEND SINGLE SOCKET 6 210 1196900120 160mm 45° BEND DOUBLE SOCKET 6 210
3095401081 244mm 45° BEND SINGLE SOCKET 3095401067 244mm 45° BEND DOUBLE SOCKET
3095401093 315mm 45° BEND SINGLE SOCKET

30° BEND 30° BEND DOUBLE
SINGLE SOCKET SOCKET
Code Description Pack Pallet Code Description Pack Pallet
1196900094 110mm 30° BEND SINGLE SOCKET 18 720 1196900091 110mm 30° BEND DOUBLE SOCKET 15 600
1196900101 160mm 30° BEND SINGLE SOCKET 6 240 1196900099 160mm 30° BEND DOUBLE SOCKET 6 240
3095401080 244mm 30° BEND SINGLE SOCKET 3095401066 244mm 30° BEND DOUBLE SOCKET
3095401092 315mm 30° BEND SINGLE SOCKET

15° BEND 15° BEND DOUBLE
SINGLE SOCKET SOCKET
Code Description Pack Pallet Code Description Pack Pallet
1196900075 110mm 15° BEND SINGLE SOCKET 10 700 1196900072 110mm 15° BEND DOUBLE SOCKET 10 700
1196900082 160mm 15° BEND SINGLE SOCKET 6 240 1196900080 160mm 15° BEND DOUBLE SOCKET 6 240
3095401079 244mm 15° BEND SINGLE SOCKET 3095401065 244mm 15° BEND DOUBLE SOCKET

ADJUSTABLE BEND REST BEND DOUBLE
- D560 SOCKET - D571
Code Description Pack Code Description Pack
2496000005 110mm 87.5° ADJUSTABLE BEND 1 2496002162 110mm 87.5° REST BEND DOUBLE 1

DRAINAGE SYSTEMS 57
