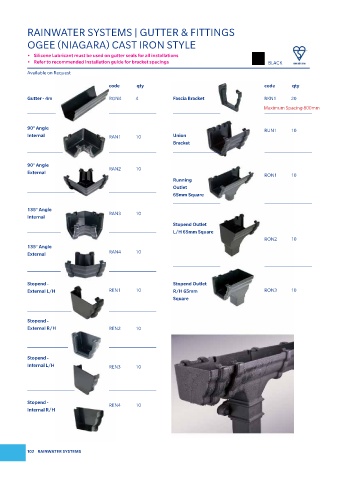

RAINWATER SYSTEMS | GUTTER & FITTINGS
OGEE (NIAGARA) CAST IRON STYLE

• Silicone Lubricant must be used on gutter seals for all installations
• Refer to recommended installation guide for bracket spacings BLACK
Available on Request

code qty code qty

Gutter - 4m RGN4 4 Fascia Bracket RKN1 20
Maximum Spacing 800mm

90° Angle
RUN1 10
Internal RAN1 10 Union
Bracket

90° Angle
RAN2 10
External
RON1 10
Running
Outlet
65mm Square

135° Angle
RAN3 10
Internal
Stopend Outlet
L/H 65mm Square
RON2 10
135° Angle
RAN4 10
External

Stopend - Stopend Outlet
External L/H REN1 10 R/H 65mm RON3 10
Square

Stopend -
External R/H REN2 10

Stopend -
Internal L/H REN3 10

Stopend -
REN4 10
Internal R/H
