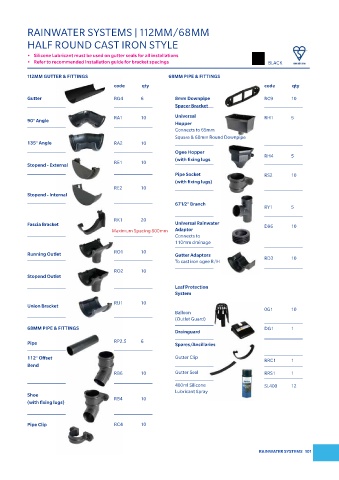

RAINWATER SYSTEMS | 112MM/68MM
HALF ROUND CAST IRON STYLE

• Silicone Lubricant must be used on gutter seals for all installations
• Refer to recommended installation guide for bracket spacings BLACK

112MM GUTTER & FITTINGS 68MM PIPE & FITTINGS
code qty code qty

Gutter RG4 6 8mm Downpipe RC9 10
Spacer Bracket
RA1 10 Universal RH1 5
90° Angle
Hopper
Connects to 65mm
Square & 68mm Round Downpipe
135° Angle RA2 10
Ogee Hopper
RH4 5
(with fixing lugs
RE1 10
Stopend - External
Pipe Socket RS2 10
(with fixing lugs)
RE2 10
Stopend - Internal
671⁄2° Branch
RY1 5

RK1 20
Fascia Bracket Universal Rainwater D96 10
Maximum Spacing 800mm Adaptor
Connects to
110mm drainage

RO1 10
Running Outlet Gutter Adaptors
To cast iron ogee R/H RD3 10
RO2 10
Stopend Outlet
Leaf Protection
System
RU1 10
Union Bracket
Balloon 0G1 10
(Outlet Guard)
68MM PIPE & FITTINGS DG1 1
Drainguard

Pipe RP2.5 6 Spares/Ancillaries

112° Offset Gutter Clip
RRC1 1
Bend
RB6 10 Gutter Seal RRS1 1

400ml Silicone SL400 12
Lubricant Spray
Shoe
RB4 10
(with fixing lugs)

Pipe Clip RC4 10

RAINWATER SYSTEMS 101
