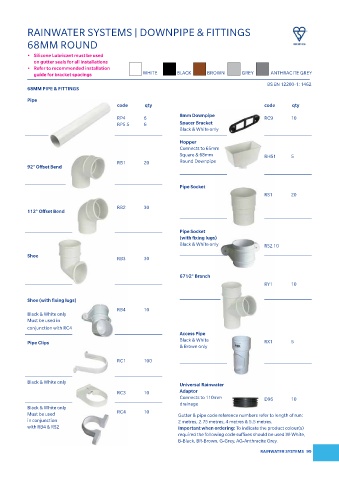

RAINWATER SYSTEMS | DOWNPIPE & FITTINGS
68MM ROUND

• Silicone Lubricant must be used
on gutter seals for all installations
• Refer to recommended installation
guide for bracket spacings WHITE BLACK BROWN GREY ANTHRACITE GREY
BS EN 12200-1: 1462
68MM PIPE & FITTINGS
Pipe
code qty code qty

8mm Downpipe
RP4 6 RC9 10
RP5.5 6 Spacer Bracket
Black & White only
Hopper
Connects to 65mm
Square & 68mm RHS1 5
RB1 20 Round Downpipe
92° Offset Bend

Pipe Socket
RS1 20

RB2 30
112° Offset Bend

Pipe Socket
(with fixing lugs)
Black & White only RS2 10

Shoe
RB3 30

671⁄2° Branch
RY1 10

Shoe (with fixing lugs)
RB4 10
Black & White only
Must be used in
conjunction with RC4
Access Pipe
Black & White
Pipe Clips RX1 5
& Brown only
RC1 100

Black & White only
Universal Rainwater
RC3 10 Adaptor
Connects to 110mm D96 10
drainage
Black & White only
Must be used RC4 10 Gutter & pipe code reference numbers refer to length of run:
in conjunction 2 metres, 2.75 metres, 4 metres & 5.5 metres.
with RB4 & RS2 Important when ordering: To indicate the product colour(s)
required the following code suffixes should be used:W-White,
B-Black, BR-Brown, G-Grey, AG-Anthracite Grey.
RAINWATER SYSTEMS 99
