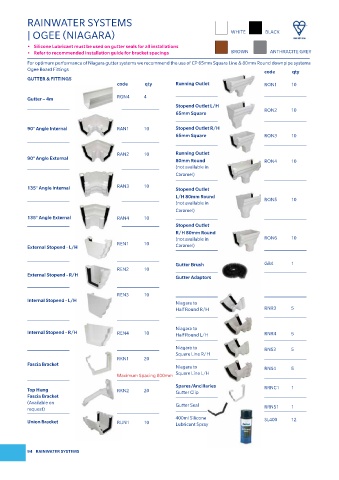

Page 94 - Pipelife Irish Trade Brochure

RAINWATER SYSTEMS
| OGEE (NIAGARA) WHITE BLACK

• Silicone Lubricant must be used on gutter seals for all installations
• Refer to recommended installation guide for bracket spacings BROWN ANTHRACITE GREY
For optimum performance of Niagara gutter systems we recommend the use of CP 65mm Square Line & 80mm Round downpipe systems
Ogee Board Fittings
code qty
GUTTER & FITTINGS
code qty Running Outlet RON1 10

RGN4 4
Gutter – 4m
Stopend Outlet L/H
RON2 10
65mm Square

90° Angle Internal RAN1 10 Stopend Outlet R/H
65mm Square RON3 10

RAN2 10 Running Outlet
90° Angle External
80mm Round RON4 10
(not available in
Caramel)

135° Angle Internal RAN3 10 Stopend Outlet
L/H 80mm Round RON5 10
(not available in
Caramel)
135° Angle External RAN4 10
Stopend Outlet
R/H 80mm Round
(not available in RON6 10
REN1 10
External Stopend - L/H Caramel)

Gutter Brush GB4 1
REN2 10
External Stopend - R/H Gutter Adaptors

REN3 10
Internal Stopend - L/H Niagara to
Half Round R/H RNR3 5

Niagara to
Internal Stopend - R/H REN4 10 Half Round L/H RNR4 5

Niagara to RNS3 5
Square Line R/H
RKN1 20
Fascia Bracket Niagara to RNS4 5
Square Line L/H
Maximum Spacing 800mm
Spares/Ancillaries RRNC1 1
Top Hung RKN2 20 Gutter Clip
Fascia Bracket
(Available on Gutter Seal
request) RRNS1 1
400ml Silicone SL400 12
Union Bracket RUN1 10 Lubricant Spray

94 RAINWATER SYSTEMS
