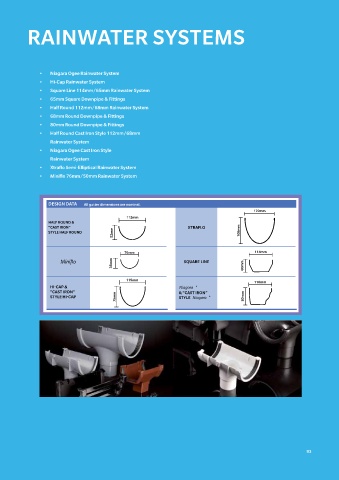

RAINWATER SYSTEMS

• Niagara Ogee Rainwater System
• Hi-Cap Rainwater System
• Square Line 114mm/65mm Rainwater System
• 65mm Square Downpipe & Fittings
• Half Round 112mm/68mm Rainwater System
• 68mm Round Downpipe & Fittings
• 80mm Round Downpipe & Fittings
• Half Round Cast Iron Style 112mm/68mm
Rainwater System
• Niagara Ogee Cast Iron Style
Rainwater System
• Xtraflo Semi-Elliptical Rainwater System
• Miniflo 76mm/50mm Rainwater System

DESIGN DATA All gutter dimensions are nominal.
170mm
112mm
HALF ROUND &
“CAST IRON” XTRAFLO
STYLE HALF ROUND 52mm 108mm

76mm 114mm
Miniflo 38mm SQUARE LINE 60mm

115mm
110mm
HI-CAP & Niagara ©
“CAST IRON” & “CAST IRON”
STYLE HI-CAP 75mm STYLE Niagara © 80mm

93
