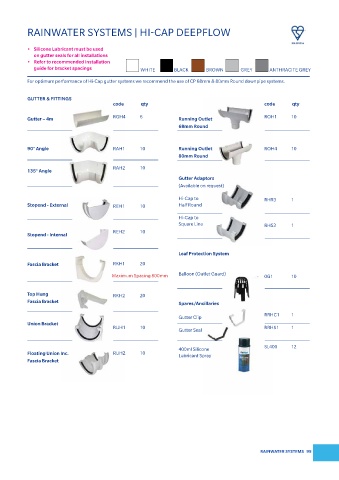

RAINWATER SYSTEMS | HI-CAP DEEPFLOW

• Silicone Lubricant must be used
on gutter seals for all installations
• Refer to recommended installation
guide for bracket spacings WHITE BLACK BROWN GREY ANTHRACITE GREY

For optimum performance of Hi-Cap gutter systems we recommend the use of CP 68mm & 80mm Round downpipe systems.

GUTTER & FITTINGS
code qty code qty

RGH4 6 ROH1 10
Gutter – 4m Running Outlet
68mm Round

90° Angle RAH1 10 Running Outlet ROH4 10
80mm Round
RAH2 10
135° Angle
Gutter Adaptors
(Available on request)

Hi-Cap to RHR3 1
Stopend - External REH1 10 Half Round

Hi-Cap to
Square Line RHS3 1
REH2 10
Stopend - Internal

Leaf Protection System
Fascia Bracket RKH1 20

Maximum Spacing 800mm Balloon (Outlet Guard) 0G1 10

Top Hung RKH2 20
Fascia Bracket Spares/Ancillaries
RRHC1 1
Gutter Clip
Union Bracket
RUH1 10 RRHS1 1
Gutter Seal

SL400 12
400ml Silicone
Floating Union Inc. RUH2 10
Lubricant Spray
Fascia Bracket

RAINWATER SYSTEMS 95
