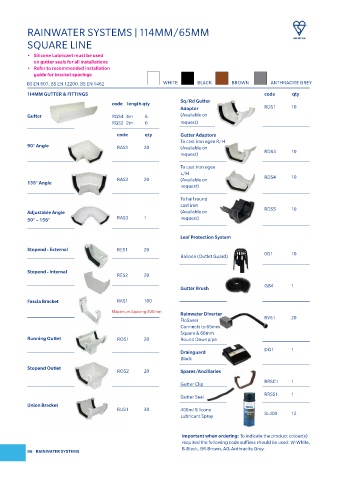

RAINWATER SYSTEMS | 114MM/65MM
SQUARE LINE
• Silicone Lubricant must be used
on gutter seals for all installations
• Refer to recommended installation
guide for bracket spacings
BS EN 607, BS EN 12200, BS EN 1462 WHITE BLACK BROWN ANTHRACITE GREY
114MM GUTTER & FITTINGS code qty
Sq/Rd Gutter
code length qty
Adaptor RDS1 10
Gutter RGS4 4m 6 (Available on
RGS2 2m 6 request)
code qty Gutter Adaptors
To cast iron ogee R/H
90° Angle RAS1 20 (Available on
request) RDS3 10
To cast iron ogee
L/H
RAS2 20 (Available on RDS4 10
135° Angle
request)
To half round
cast iron
Adjustable Angle (Available on RDS5 10
50° – 156° RAS3 1 request)
Leaf Protection System
Stopend - External RES1 20
Balloon (Outlet Guard) 0G1 10
Stopend - Internal
RES2 20
GB4 1
Gutter Brush
Fascia Bracket RKS1 100
Maximum Spacing 800mm Rainwater Diverter
FloSaver RVS1 20
Connects to 65mm
Square & 68mm
Running Outlet ROS1 20 Round Downpipe
DG1 1
Drainguard
Black
Stopend Outlet
ROS2 20 Spares/Ancillaries
RRSC1 1
Gutter Clip
RRSS1 1
Gutter Seal
Union Bracket
RUS1 30 400ml Silicone
Lubricant Spray SL400 12
Important when ordering: To indicate the product colour(s)
required the following code suffixes should be used: W-White,
B-Black, BR-Brown, AG-Anthracite Grey.
96 RAINWATER SYSTEMS
