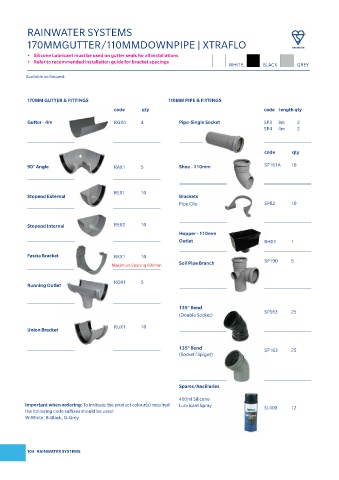

Page 104 - Pipelife Irish Trade Brochure

RAINWATER SYSTEMS
170MMGUTTER/110MMDOWNPIPE | XTRAFLO

• Silicone Lubricant must be used on gutter seals for all installations
• Refer to recommended installation guide for bracket spacings
WHITE BLACK GREY
Available on Request

170MM GUTTER & FITTINGS 110MM PIPE & FITTINGS
code qty code length qty

Gutter - 4m RGX4 4 Pipe-Single Socket SP3 3m 2
SP4 4m 2

code qty

90° Angle RAX1 5 Shoe - 110mm SP161A 10

REX1 10
Stopend External Brackets
Pipe Clip SP82 10

Stopend Internal REX2 10
Hopper - 110mm
Outlet RHX1 1

Fascia Bracket RKX1 10
Soil Pipe Branch SP190 5
Maximum Spacing 600mm

ROX1 5
Running Outlet

135° Bend
SP563 25
(Double Socket)
RUX1 10
Union Bracket

135° Bend SP163 25
(Socket/Spigot)

Spares/Ancillaries

400ml Silicone
Important when ordering: To indicate the product colour(s) required Lubricant Spray SL400 12
the following code suffixes should be used:
W-White, B-Black, G-Grey.

104 RAINWATER SYSTEMS
